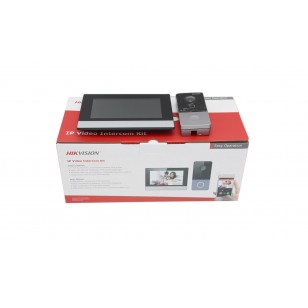

Hikvision IP Video Intercom Kit Calling ...

Specifications:

Villa Door Station - System parameters

• Operation systemEmbedded Linux operation system
• Operation methodSingle-button
• Flash32 M
• RAM256 M

Villa Door Station - Video Parameters

• Camera2MP HD camera
• Night visionLow illumination IR supplement mode:3 m
• BLCSupport
• DNRSupport
• WDRTrue WDR
• Field of viewHorizontal: 129° Vertical: 75°
• Video compression standardH.264
• StreamMain stream: 1080p@30fps, 720p@25fps Sub stream: D1@25fps
• ResolutionMain stream: 1920 × 1080p, 720p Sub stream: 704 × 576
• Motion detectionSupport
• Anti-flicker frequency50 Hz, 60 Hz

Villa Door Station - Audio parameters

• Audio intercomTwo-way audio communication
• Audio inputBuilt-in omnidirectional microphone
• Audio outputBuilt-in loudspeaker
• Audio compression standardG.711 U
• Audio compression Rate64 Kbps
• Audio qualityNoise suppression and echo cancellation

Villa Door Station - Network parameters

• Wired network10/100 Mbps Ethernet
• Network protocolTCP/IP, RSTP

Villa Door Station - Access control parameters

• Reading frequency13.56 MHz
• Card typeMifare card
• Relay1

Villa Door Station - Interfaces

• RS-4851
• Wi-Fi2.4G Wi-Fi
• Debugging port1
• TF card0
• Alarm input4
• Grounding1
• Physical button1
• TAMPER switch1

Villa Door Station - General

• Protection levelIP65
• Indicator2
• Power supplyIEEE802.3af, standard PoE 12 VDC
• Power consumption＜ 10 W
• Working temperature-40° C to +60° C(-40° F to 140° F)
• Working humidity10% to 95%
• Installation Surfacemounting
• Dimension138 mm × 65 mm × 27 mm

Indoor Station - System parameters

• Memory128 MB
• Flash32 MB
• Operation systemEmbedded Linux operation system

Indoor Station - Display parameters

• Display screen7-inch colorful TFT screen
• Display resolution1024 × 600
• Operation methodCapacitive touch screen

Indoor Station - Audio parameters

• Audio inputBuilt-in omnidirectional microphone
• Audio outputBuilt-in loudspeaker
• Audio compression standardG.711 U
• Audio compression rate64 Kbps
• Audio qualityNoise suppression and echo cancellation

Indoor Station - Network parameters

• Wired network10/100 Mbps self-adaptive
• Wireless networkWi-Fi 802.11 b/g/n
• Network protocolTCP/IP, SIP, RTSP
• Network interface1 RJ-45 10/100 Mbps self-adaptive

Indoor Station - Interfaces

• Alarm input8-ch alarm inputs
• Relay output2
• TF cardMax to 32 G, SD 2.0 or lower version
• RS4851

Indoor Station - General

• Power supplyIEEE802.3af, standard PoE 12 VDC/1 A
• Power consumption≤ 6 W
• Working temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working humidity10% to 90%
• Dimensions200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
• Weight1.599 kg
