Key Features Model: DS-2CE16D0T-EXLPF (3.6mm) Image Sensor: 2 MP CMOS Max. Resolution: 1920 (H) × 1080 (V) Up to 20 meters IR distance IP67 Water and Dust Resistant
| General | ||
| Casing | Plastic | |
| Dimensions | Ø70 mm × 138.8 mm (Ø2.76" x 5.46") | |
| Weight | Max. 150 g (0.33 lb.) | |
| Pan/Tilt/Rotation | Pan: 0 to 360°, Tilt: 0 to 90°, Rotate: 0 to 360° | |
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation) | |
| Power Supply | 12 VDC ± 25%, Max. 3.2 W | |
| Camera | ||
| Image Sensor | 2 MP CMOS | |
| Electronic Shutter Speed | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s | |
| Minimum Illumination | 0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR | |
| IR Distance | Up to 20 m IR distance for bright night imaging Up to 20 m white light distance for bright night imaging | |
| Lens | ||
| Lens Type | 3.6 mm fixed focal lens | |
| Mount Type | M12 | |
| Focal Length | 3.6 mm, horizontal FOV: 77°, vertical FOV: 43°, diagonal FOV: 90° | |
| Video | ||
| Resolution | 1920 (H) × 1080 (V) | |
| Video Output | 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) | |
| Day/Night | ICR | |
| Interface | ||
| Audio Interface | ||
| Warranty | ||
| Warranty | 1 year | |

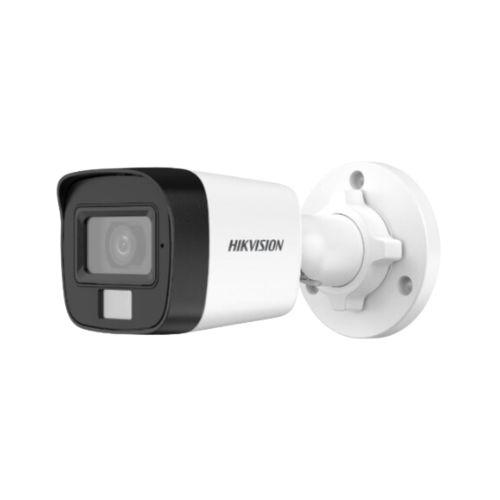

The Hikvision DS-2CE16D0T-EXLPF (3.6mm) 2MP Smart Hybrid Light Bullet CC Camera has a 2 MP resolution of 1920 × 1080, providing clear and comprehensive video footage for security monitoring. This CC camera, which has a 3.6 mm fixed focal lens and intelligent hybrid lighting technology, improves visibility at night with a variety of lighting options. It can illuminate up to 20 meters with infrared (IR) light and up to the same distance with white light, so it can capture crisp, bright images even in total darkness. Excellent clarity is provided by its sophisticated 2 MP CMOS image sensor, and ICR (Infrared Cut Filter Removal) technology powers the camera's day and night capability, maximizing performance in a range of lighting settings. The Hikvision DS-2CE16D0T-EXLPF (3.6mm) 2MP Bullet Camera is a versatile device that works with a variety of systems since it supports four switchable video formats: TVI, AHD, CVI, and CVBS. Additionally, it has features like highlight compensation (HLC), backlight compensation (BLC), and digital wide dynamic range (DWDR), which improve image quality in difficult lighting conditions. Both manual and automatic white balance are supported by the camera, and its movable settings let you customize brightness, sharpness, and smart infrared for a customized look. The Hikvision DS-2CE16D0T-EXLPF (3.6mm) 2MP Smart Hybrid Light Bullet Camera is made to last. It has an IP67 protection certification and is designed to survive temperatures ranging from -40°C to 60°C. It is contained in a plastic housing that is resistant to dust and water. It weighs only 150 g and is small and light, measuring Ø70 mm by ×138.8 mm. It is very simple to install. With a maximum power consumption of 3.2 watts and a 12 VDC power source, this camera provides a dependable and effective option for home or business security requirements. Its compatibility for the HIKVISION-C protocol allows for simple integration with Hikvision systems.
