Key Features Model: DH-HAC-HDW1209CLQP-A-LED Image Sensor: 2MP CMOS Effective Pixels: 1920 (H) × 1080 (V) IR Distance: 20 m (65.62 ft) Quick-to-install eyeball saves installation time
| Camera Feature | ||
| Image Sensor | 2MP CMOS | |
| Effective Pixels | 1920 (H) × 1080 (V) | |
| IR Distance | 20 m (65.62 ft) | |
| Others | Scanning System: Progressive Electronic Shutter Speed PAL: 1/25~1/100000s NTSC: 1/30~1/100000s Minimum Illumination: 0.005 lux@F1.6 (Color) 0 lux (Illuminator on) S/N Ratio: More than 65dB | |
| Lens | ||
| Type | Fixed-focal | |
| Focal Length | 2.8 mm; 3.6 mm | |
| Aperture | F1.6 | |
| Angle of View | 2.8 mm: H: 108°; V: 58°; D: 127° 3.6 mm: H: 84°; V: 43°; D: 102° | |
| Others | Mount Type: M12 Close Focus Distance 2.8 mm: 0.7 m (2.3 ft) 3.6 mm: 1.3 m (4.27 ft) | |
| Physical Specification | ||
| Dimension | Φ97.1 mm × 93.8 mm (Φ3.82" × 3.69") | |
| Weight | Net Weight: 0.17 kg (0.37 lb) Gross Weight: 0.28kg (0.62 lb) | |
| Power | Power Supply: 12V DC ±30% Power Consumption: Max 3.3 W (12 V DC, LED on) | |
| Others | Ingress Protection: IP67 | |
| Warranty | ||
| Warranty | 1 Year | |

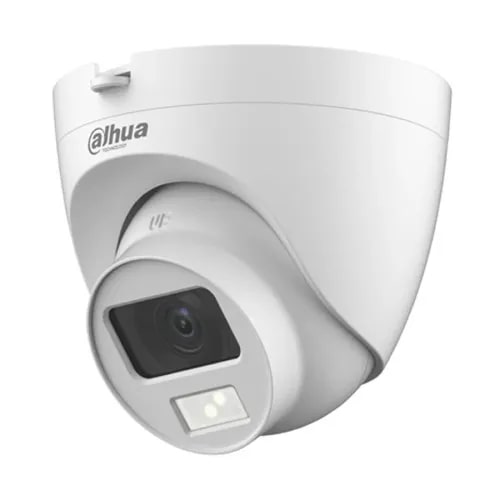

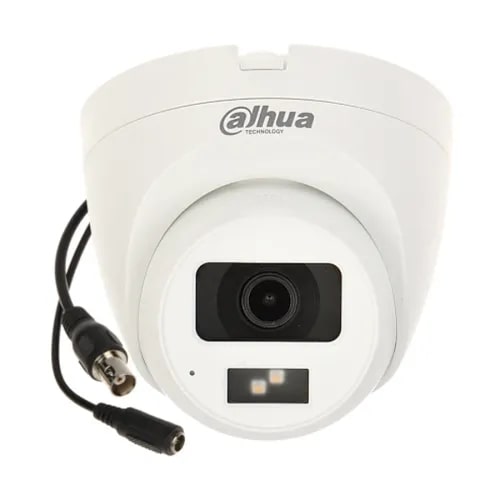

The Dahua DH-HAC-HDW1209CLQP-A-LED 2MP Dome CC Camera is a tough and adaptable surveillance equipment designed to provide high-quality security monitoring around the clock. The DH-HAC-HDW1209CLQP-A-LEDcamera's 2MP sensor records sharp and detailed 1080p video at up to 30 frames per second, ensuring that every moment is caught precisely. This camera's highlight feature is its 24/7 color imaging capacity, which, when paired with its strong LED lighting that reaches up to 20 meters, offers bright and accurate color film even in low light or at night. The DH-HAC-HDW1209CLQP-A-LED cc camera's design incorporates a quick-install eyeball mount, which reduces installation time and makes it easy to position the camera for maximum coverage. The Dahua DH-HAC-HDW1209CLQP-A-LED comes with a 3.6 mm fixed lens, which provides a balanced field of vision suited for a variety of surveillance applications, and an alternative 2.8 mm lens is available for those who want a wider angle. The built-in microphone (-A) provides an additional layer of security by allowing audio recording, which captures essential sound details that might be critical in certain scenarios. Because of its switchable video formats, which include CVI, CVBS, AHD, and TVI, this camera is very versatile and easy to incorporate into a variety of current systems. The Dahua DH-HAC-HDW1209CLQP-A-LED is rated IP67 for water and dust protection, making it appropriate for both indoor and outdoor use. This camera operates on a 12 VDC power supply and is not only reliable and durable but also versatile, providing a comprehensive security solution for any setting.
