Key Features Model: NVR302-16S Input: 16 Channel Incoming Bandwidth: 112Mbps Recording resolution: Up to 8MP 2 SATA HDD up to 16TB
| System | ||
| Operating System | Linux system | |
| Audio and Video | ||
| IP Camera Input | 16 Channel | |
| Display | ||
| Interface | HDMI: 3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
| Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Recording | ||
| Compression | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Video Detection And Alarm | ||
| Video Detection | Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking, Object Left Behind, Object Removed, Face search, Behavior search, People counting | |
| Playback And Backup | ||
| Sync Playback | 16 channel | |
| Third Party Support | ||
| Third Party Support | ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T | |
| Network | ||
| Interface | 1 RJ45 | |
| Ethernet Port | 10M/100M/1000M self-adaptive ethernet interface | |
| Network Function | Incoming Bandwidth: 112Mbps Outgoing Bandwidth: 96Mbps | |
| Maximum User Access | Remote Users: 128 | |
| Storage | ||
| Internal HDD | 2 SATA interface | |
| HDD Mode | Up to 16TB | |
| Auxiliary Interface | ||
| USB | Rear panel: 1 x USB2.0 Front panel: 1 x USB2.0 | |
| Power | ||
| Power Supply | 12V DC | |
| Power Consumption | ≤ 7 W( without HDD ) | |
| Component Environment | ||
| Operational Conditions | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) | |
| Construction | ||
| Dimensions | 380mm × 315mm ×49mm (15.0" × 12.4" ×1.9" ) | |
| Net Weight | ≤ 1.6 Kg (3.53 lb ) | |
| Warranty | ||
| Manufacturing Warranty | 1 year Warranty | |

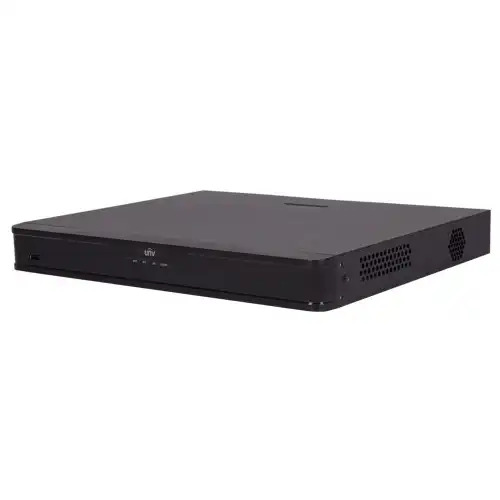

The Uniview NVR302-16S 16 Channel 4K NVR features the Latest Smart Detection System this part of its detecting capabilities, this system includes Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking, Object Left Behind, Object removal, Face search, Behavior search, and People counting. This Uniview NVR302-16S 16 Channel 4K NVR provides Ultra 265/H.265/H.264 video format. This Uniview NVR has HDMI and VGA video outputs. The HDMI capacity is 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60 and the VGA capacity is 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1280x720@60, 1024x768@60. This Uniview NVR302-16S 16 Channel 4K NVR Recording resolution is 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 2MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ CIF. This device has 2 SATA HDD ports with a maximum port capacity of up to 8TB for each hard drive. This NVR device network capacity is 1 RJ45 10M/100M/1000M self-adaptive Ethernet Interface and 2 more USB ports 1 is USB2.0 and the other 1 is USB2.0.
This Uniview NVR302-16S 16 Channel 4K NVR features P2P, UPnP, NTP, DHCP, and PPPoE network protocols and the Incoming bandwidth is 112Mbps and the Outgoing bandwidth 96Mbps. This device can provide maximum access to 128 remote users.
A Uniview NVR302-16S 16 Channel 4K NVR has Ultra 265/ H.265/ H.264 decoding format. This device features 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF Live view and playback resolution and its corridor mode screen is 3/4/5/7/9/10/12/16. This device's Decoding capacity is 1 x 4K@30, 1 x 6MP@30,1 x 5MP@30, 2 x 4MP@30, 4 x 1080p@30, 8 x 720p@30,16 x D1.
The Uniview NVR302-16S 16 Channel 4K NVR features the latest Variable Console Automation (VCA) Technology in this technology smartly detects Humans and objects. This NVR has Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking, Face search, Behavior search, and people counting.
