Key Features Model: DS-2CE76D0T-EXLPF (2.8mm) Image Sensor: 2 MP CMOS Max. Resolution: 1920 (H) × 1080 (V) Up to 20 meters IR distance Lens Type: 2.8 mm fixed focal lens
| General | ||
| Casing | Plastic | |
| Dimensions | Ø85 mm × 84.6 mm (3.35" × 3.33") | |
| Weight | Max. 150 g (0.33 lb.) | |
| Pan/Tilt/Rotation | Pan: 0 to 360°, Tilt: 0 to 90°, Rotate: 0 to 360° | |
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation) | |
| Power Supply | 12 VDC ± 25%, Max. 3.2 W | |
| Camera | ||
| Image Sensor | 2 MP CMOS | |
| Electronic Shutter Speed | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s | |
| Minimum Illumination | 0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR | |
| IR Distance | Up to 20 m IR distance for bright night imaging Up to 20 m white light distance for bright night imaging | |
| Lens | ||
| Lens Type | 2.8 mm fixed focal lens | |
| Mount Type | M12 | |
| Focal Length | 3.6 mm, horizontal FOV: 77°, vertical FOV: 43°, diagonal FOV: 90° | |
| Video | ||
| Resolution | 1920 (H) × 1080 (V) | |
| Video Output | 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) | |
| Day/Night | ICR | |
| Warranty | ||
| Warranty | 1 year | |

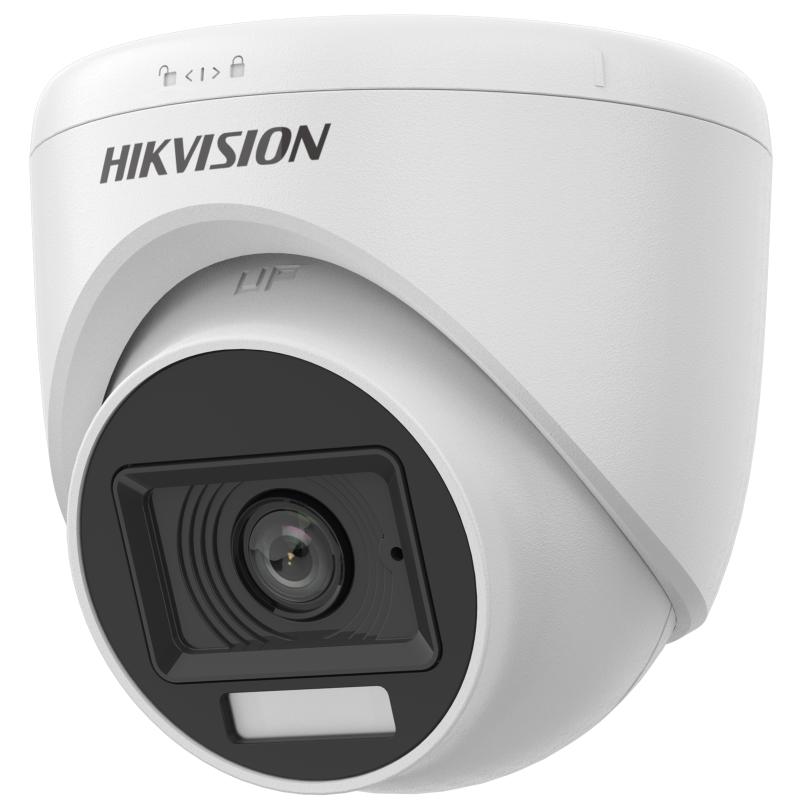

The Hikvision DS-2CE76D0T-EXLPF (2.8mm) 2MP Smart Hybrid Light Dome CC Camera is a multipurpose security tool that provides excellent imaging thanks to its 2 MP CMOS sensor and 1920 × 1080 resolution. It has a 2.8mm fixed focal lens and offers a 97° horizontal, 54° vertical, and 113° diagonal field of view. With a clever hybrid light system that adjusts to different lighting circumstances, such as infrared illumination up to 20 meters for clear night vision and white light illumination up to 20 meters for increased brightness in low-light conditions, this camera performs very well both during the day and at night. With a 360° pan, 75° tilt, and 360° rotation, the Hikvision DS-2CE76D0T-EXLPF (2.8mm) 2MP Dome CC Camera's design enables wide-angle adjustments. This camera simply fits into current security systems because it has a single connection that offers four switchable signals: TVI, AHD, CVI, and CVBS. Additional features include image enhancement technologies including BLC, HLC, and Global for better image quality, as well as digital wide dynamic range (DWDR), which maximizes exposure in high contrast lighting circumstances. The image settings of the Hikvision DS-2CE76D0T-EXLPF (2.8mm) 2MP Smart Hybrid Light Dome CC Camera can be changed for brightness, sharpness, and Smart IR, guaranteeing crisp images in any situation. It can function effectively in temperatures ranging from -40°C to 60°C and is made to tolerate up to 90% humidity without producing condensation. At just 150g and 85mm x 84.6mm, the Hikvision DS-2CE76D0T-EXLPF (2.8mm) 2MP Smart Hybrid Light Dome CC Camera is small enough for covert installations. At a maximum usage of 3.5W, the device runs on 12 VDC electricity. With its sturdy plastic construction, this security solution is dependable and versatile for both indoor and outdoor use, offering constant performance in a variety of settings.
