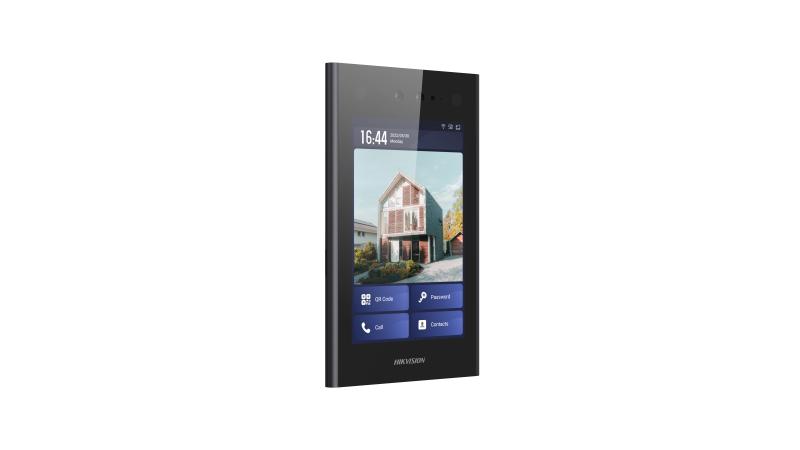

Facial Recognition Door station-DS-KD9403-E6

In Stock

৳0.00

4.3-inch colorful LCD screen with 800 × 480 resolution 2 × 2 MP camera with IR supplement One-touch physical button for easier calls Standard PoE power supply IK08 & IP65 higher protection level Multiple authentication methods: Face, Pin code, Card, QR code, Bluetooth Call directly to Hik-Connect APP without indoor station

Add To Cart

SKU: 7934151
Category: Video Intercom System

Description
Reviews (0)

System parameters
Operation systemLinux
ROM4 GB
RAM1 GB
ProcessorEmbeded high performance processor

Display parameters
Screen size4.3-inch
Operation methodCapacitive touch screen
TypeIPS
Resolution800 × 480
Luminance425 cd/m²

Video parameters
Lens2
Resolution2 × 2 MP
FOVHorizontal: 88°, Vertical: 44°
Wide dynamic range (WDR)Support 120 dB
Supplement lightIR light, up to 3 m
Video compression standard
Main stream and sub stream: H.264
Third stream: H.265

Audio parameters
Audio input1 built-in omnidirectional microphone
Audio compression standardG.711u、G.711a、Opus、AAC-LD、AAC-LC、G.726、G.722.1
Audio output1 built-in loudspeaker
Audio compression bitrateG.711u、G.711a、Opus：64kbps；G.722.1、G.726：32kbps；AAC-LD、AAC-LC：16kbps
Audio qualityNoise suppression and echo cancellation
Volume adjustmentAdjustable

Capacity
User capacity20000
Face capacity10000
Fingerprint capacity/
Card capacity100000
Message capacity/
Linked indoor station capacity500
Sub door station capacity16

Network parameters
Network protocolTCP/IP, RTSP
Wi-FiIEEE802.11b, IEEE802.11g, IEEE802.11n
BluetoothSupport：2.0
3G/4G/

Authentication
Card reading frequency13.56 MHz
Face recognition distance0.3 to 2 m
Face recognition accuracy rate≥ 99%
Face recognition duration＜ 0.2 s per person

Device interfaces
Alarm input4 (2 exit butttons and 2 door contacts by default)
Network interface1 RJ-45, 10/100 Mbps self-adaptive
TAMPER1
Exit button2
RS-4851
USB/
Wiegand/
TF cardReserved
Lock control
2 relays, Max. 30 VDC 2 A,
lock 2 needs secure module
Door contact input2

General
Button1 physical button
InstallationSurface mounting
Indicator/
Weight
Net weight: 0.405 kg
Gross weight: 0.752 kg
Protective levelIP65, IK08
Working temperature-40 °C to 60 °C (-40 °F to 140 °F)
Working humidity10% to 90% (no-condensing)
Dimension (W × H × D)182 mm × 85 mm × 26 mm (7.16" × 3.34" × 1.01")
Battery/
Power supply12 VDC, 1.5 A,IEEE802.3af, Standard PoE
Application environmentOutdoor
Power consumption≤ 6 W
LanguageEnglish,French,BrazilianPortuguese,Spanish,Russian,German,Italian,Polish,Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbian,Greek
