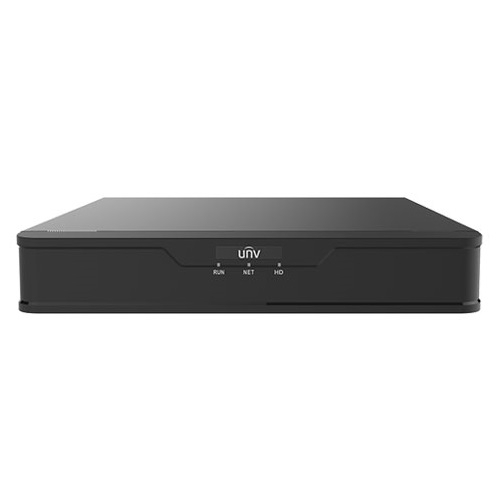

Key Features Model: NVR301-16E2 16 Channel Ultra 265 Video Up to 4K resolution recording HDMI and VGA simultaneous output 1 SATA HDD up to 6TB
| System | ||
| Operating System | Linux system | |
| Audio and Video | ||
| IP Camera Input | 16 Channel | |
| Display | ||
| Interface | HDMI: 3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
| Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Recording | ||
| Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Video Detection And Alarm | ||
| Video Detection | Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking, Object Left Behind, Object Removed, Face search, Behavior search, People counting | |
| Playback And Backup | ||
| Sync Playback | 16 channel | |
| Third Party Support | ||
| Third Party Support | ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T | |
| Network | ||
| Interface | 1 RJ45 | |
| Ethernet Port | 10M/100M, self-adaptive ethernet interface | |
| Network Function | Incoming Bandwidth: 64Mbps Outgoing Bandwidth: 64Mbps | |
| Maximum User Access | Remote Users: 128 | |
| Storage | ||
| Internal HDD | 1 SATA interface | |
| HDD Mode | Up to 6TB | |
| Auxiliary Interface | ||
| USB | Rear Panel: 1 x USB2.0, 1 x USB3.0 | |
| Power | ||
| Power Supply | 12V DC | |
| Power Consumption | ≤9 W (without HDD) | |
| Component Environment | ||
| Operational Conditions | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) | |
| Construction | ||
| Dimensions | 260mm × 240mm × 47mm (10.2"×9.4"×1.9 ") | |
| Net Weight | 1.3kg (2.87 lb) | |
| Warranty | ||
| Manufacturing Warranty | 1 year Warranty | |
A Uniview NVR301-16E2 16 Channel NVR has Incoming and Outgoing Bandwith speed 64Mbps and this device uses network protocols P2P, UPnP, NTP, DHCP, and PPPoE for transferring the fastest bandwidth. This Uniview E2 series NVR capable to 4K/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ CIF recording resolution. The Uniview NVR301-16E2 16 Channel NVR features smart Intrusion Prevention on 8 VGA HDMI 4K and VGA output Mouse Space for 1 SATA HDD WEB, CMS, Smartphone, and NVR interface ONVIF Compatible Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T. The Uniview NVR301-16E2 NVR has pre-installed video software for guaranteed Quick use and easy remote access. The E2 NVE series is a rack-mount Network video recorder with the latest smart function. This NVR Firmware can be upgraded by cloud and the networking interface is 1 RJ45 10M/100M self-adaptive Ethernet Interface. This NVR has two Rear panels USB interface port versions first USB2.0 and second USB3.0.
This E2 series Uniview NVR301-16E2 16 Channel NVR features Smart VCA Detection System and this detection system provides Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking, Object Left Behind, Object removal, Face search, Behavior search, and People counting. This VCA Detection system easily detects a human face, human voice, and human behavior and searches the human face and other objects.
Uniview NVR301-16E2 16 Channel NVR uses a Smart VCA detection System and performs Statistical Analysis very fast through this system. Human counts and objects count very smartly through statistical analysis.
