Key Features Model: IPC2122LB-SF40-A Image Sensor: 1/2.8", 2.0 megapixel, progressive scan, CMOS Resolution: 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps Up to 30m (98ft) IR distance, Smart IR PoE Supported
| Camera Feature | ||
| Image Sensor | 1/2.8", 2.0 megapixel, progressive scan, CMOS | |
| Effective Pixels | 1920 x 1080 | |
| IR Distance | Up to 30m (98ft) IR distance | |
| Others | White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 Video Bit rate: 128 Kbps~16 Mbps IR Control: Auto/ Manual | |
| Lens | ||
| Type | 4.0mm@F2.0 | |
| Focal Length | 850nm | |
| Angle of View | 87.5° x 46.3° x 92.4° | |
| Others | 2D/3D DNR Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ | |
| Physical Specification | ||
| Dimension | 161 × 63 ×62mm (6.4” × 2.5” × 2.4”) | |
| Weight | 0.27kg (0.60lb) | |
| Power | DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 5.5W | |
| Interface | 10/100M Base-TX Ethernet | |
| Others | Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) IP67 Water & Dust Protection | |
| Warranty | ||
| Warranty | 1 Year Warranty | |

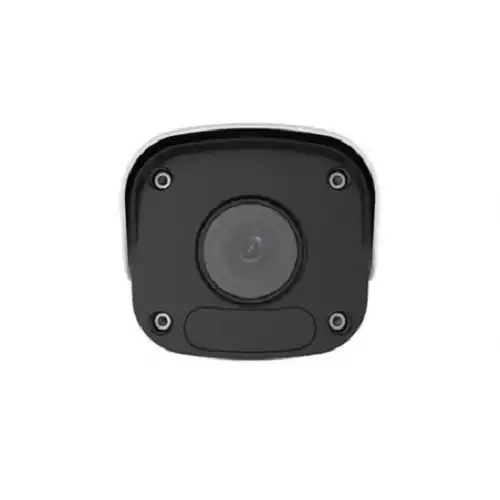

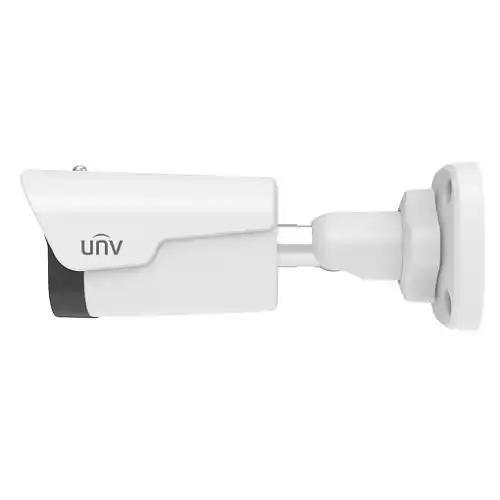

The Uniview IPC2122LB-SF40-A 2MP IR Mini IP Bullet Camera with 1/2.8" CMOS 2.0 megapixel, main stream 1080P (1920*1080), Maximum 30fps, 720P (1280*720), Maximum 30fps and sub-stream D1 (720*576), Maximum 30fps, 640*360, Maximum 30fps, 2CIF(704*288), Maximum 30fps, CIF(352*288), Maximum 30fps, Video bit rate 128 Kbps~16 Mbps, Motion detection and privacy mask has up to 4 areas, up to 4 OSDs. This Uniview IP camera provides up to 30 meters of 2D/3D IR distance. This Uniview IPC2122LB-SF40-A 2MP IR Mini IP Bullet Camera has IP67 Ingress protection, and the enclosure can normally work in soaking 1 Meter deep water for 30 minutes. This Uniview IPC2122LB-SF40-A has 12V DC PoE Power Supported, it is widely applied to outdoor environments with unstable voltage, and follows IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP network protocols. This bullet camera features ROI Ultra 265, H.265, and H.264.
