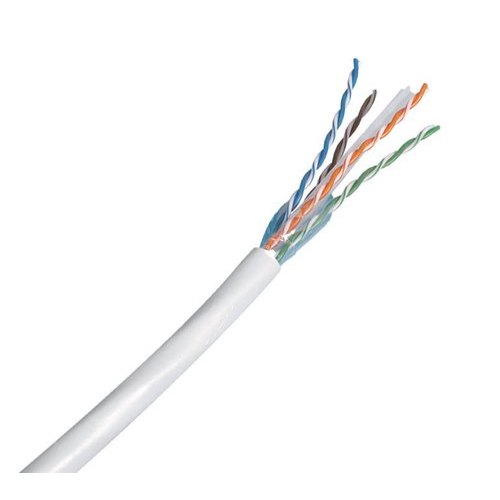

Key Features MPN: R795138GREY/R795138YL/R795138BL Model: CAT6 U/UTP FRPVC Outer Jacket: Flame retardant-PVC; Conductor: Bare Solid Copper Transmission frequency 250Mhz 4pair with cross separator; 3P and UL certified Cable Length: 305 Meter
| Connection Class | ||
| Standard | ISO/IEC 11801 2nd ed.; EN 50173-1; ANSI/TIA-568-C.2 IEC 61156-5 2nd ed.; IEC 61156-7; EN 50288-6-1 | |
| Physical Specs | ||
| Color | Yellow Blue Grey | |
| Cable Details | ||
| Conductor | Bare solid copper | |
| Insulation | HDPE, overall Ø 0.92±0.02 mm | |
| Twisting | 2 wires to the pair | |
| Cable Lay-Up | 4 pairs to the core with cross separator | |
| Pair Screen | Non | |
| Overall Screen | Non | |
| Sheath | PVC, gray RAL 7035, Sheath Thickness: 0.50mm nominal | |
| Cable Information | ||
| Application | Primary (Campus), Secondary (Riser), Tertiary (Horizontal) IEEE 802.3an: 10Base-T; 100Base-TX; 1000Base-T IEEE 802.5 16 MB; ISDN; TPDDI; ATM | |
| Standards | ISO/IEC 11801 2nd ed.; EN 50173-1; ANSI/TIA-568-C.2 IEC 61156-5 2nd ed.; IEC 61156-7; EN 50288-6-1 | |
| Fire Rating | Flame retardant- PVC | |
| Technical Detail | ||
| Cable Designation | U/UTP Cat.6 250MHz | |
| Packaging | Drum 305 m | |
| Outer Diameter | 5.8±0.3mm | |
| Weight | 13.0kg nominal | |
| Pulling Pressure | 11Kg nominal | |
| Segregation Class | B | |
| Tensile Strength | > 16.5N/mm² | |
| Bending Radius | ≥ 25 mm during operation (without load) ≥ 50 mm during installation (with load) | |
| Temperature ange | During operation: -20°C…+ 60°C During installation: 0°C…+ 50°C | |

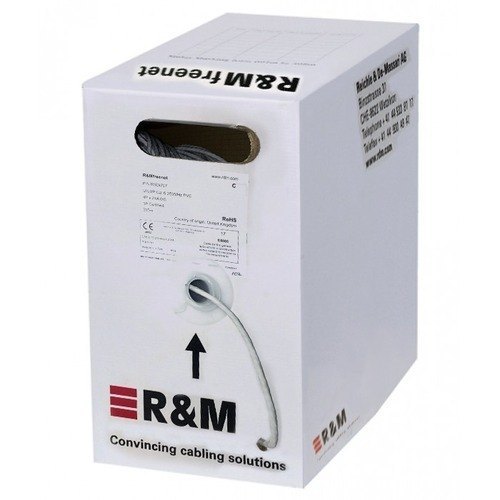

R&M Cat 6 U/UTP Cable Box comes with Bare solid copper Conductor, HDPE, overall Ø 0.92±0.02 mm, 2 wires to the pair Twisting, 4 pairs to the core with cross separator Cable lay up, PVC, gray RAL 7035, Sheath Thickness: 0.50mm nominal. It is ISO/IEC 11801 2nd ed.; EN 50173-1; ANSI/TIA-568-C.2 IEC 61156-5 2nd ed.; IEC 61156-7; EN 50288-6-1 Standard. This Cable Box also featured U/UTP Cat.6 250MHz Cable designation, 5.8±0.3mm Outer diameter, 13.0kg nominal/305m Weight, 11Kg nominal Pulling Pressure, B Segregation class with > 16.5N/mm² Tensile Strength. It also comes with 25 mm during operation (without load), ≥ 50 mm during installation (with load) Bending radius operation -20C+ 60C, During installation 0°C…+ 50°C. This Cable Box also featured with different kinds of Electrical Properties (at 20°C ± 5°C), these are ≤ 9.38 Ω / 100 m Conductor resistance, ≤ 2 % Resistance unbalance, 1000 V; DC, 1 min, core/core Test voltage, ≥ 5000 MΩ km; 500 V Insulation resistance, 44 pF / m max Capacitance, 1500 pF/km Capacitance unbalances, 100 ± 15 Ω; impedance @ 100 MHz Mean characteristics, Approx. 69 % Nominal velocity of propagation, ≤ 536 ns / 100 m; At 1 MHz Propagation delay, ≤ 45 ns / 100 m Delay skew, 40 dB Coupling attenuation.
