Key Features Model: NVR1108HS-8P-S3/H Video: Smart H.265+/Smart H.264+/H.265/H.264 Max 80Mbps incoming bandwidth HDMI, VGA video output up to 8 TB for a single HDD
| System | ||
| Main Processor | Industrial-grade embedded processor | |
| Operating System | Embedded Linux | |
| Network | ||
| Interface | New 4.0 user interface | |
| Ethernet Port | RJ–45 | |
| PoE | 8 RJ–45 ports with PoE | |
| Smart Phone | IDMSS (iOS), GDMSS (Android) | |
| Storage | ||
| Internal HDD | 1 SATA 2.0 port, up to 8 TB for a single HDD. The maximum HDD capacity varies with the environment | |
| Auxiliary Interface | ||
| USB | 1 front USB 2.0 port, 1 rear USB 2.0 port | |
| Power | ||
| Power Supply | (10/100 Mbps) | |
| Power Consumption | The total output of NVR is ≤ 10W (without HDD) The total output power of PoE is 72W, and the maximum output The power of a single port is 25.5W | |
| Construction | ||
| Dimensions | Product Dimensions: 260 mm×225 mm×47.6 mm (W × L × H) Box Dimensions: 87 mm×331 mm×312 mm (W × L × H) | |
| Net Weight | Net Weight: 0.84 kg (1.85 lb) | |
| Gross Weight | Gross weight: 1.98 kg (4.37 lb) | |
| Warranty | ||
| Manufacturing Warranty | 01-year Warranty | |

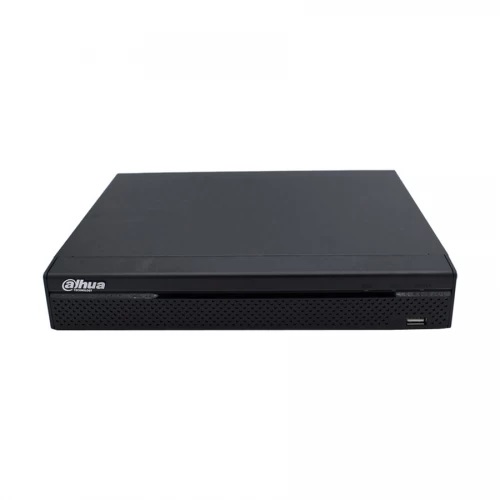

The Dahua NVR1108HS-8P-S3/H 8-Channel Network Video Recorder (NVR) has a Smart 8-Channel Compact 1U 8PoE Lite H.265 Network Video Recorder. This network video recorder is a low-cost solution that has features including local live view, multi-screen display, real-time storage on a local hard drive, mouse operation, and remote management and control. It has a maximum input bandwidth of 80Mbps, up to 8Mp resolution preview and playback, and HDMI/VGA simultaneous video 1080P output. The Dahua Smart H.265+ is a fast H.265 codec implementation that uses scene-adaptive encoding. The Dahua NVR1108HS-8P-S3/H Network Video Recorder NVR produces high-quality video while minimizing network strain by utilizing a flexible multi-frame reference structure and sophisticated noise reduction. The Dahua NVR Smart H.265+ technology reduces bit rate and storage requirements by up to 85% when compared to standard H.265 video compression. It has capabilities such as motion detection, video loss, privacy masking, PIR alarm, and IPC alarm. The Dahua NVR1108HS-8P-S3/H 8 Channel NVR has 01-Year warranty.
