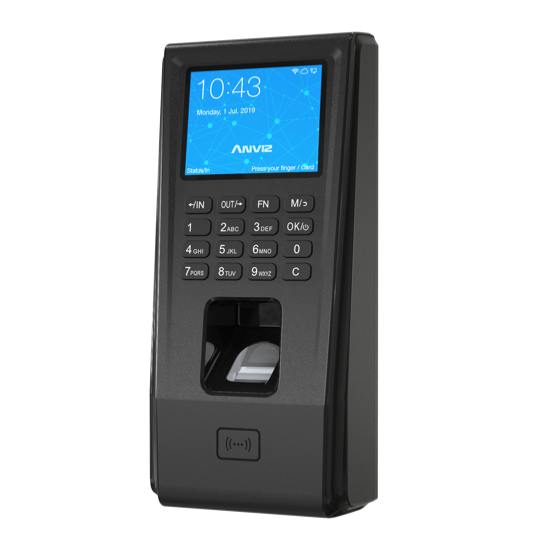

Anviz EP30 IP Fingerprint and RFID Access Control Terminal

In Stock

1Ghz Linux Based High Speed CPU Max 3,000 Users, 50,000 Records Touch On Active Fingerprint Sensor Identification time less than 0.5 second Optional EM Card, Optional Mifare Card TCP/IP, RS485, Mini USB, Optional Wi-Fi Card Reading Distance 1-5cm (125KHz, 13.56MHz >2cm) for standard CR80 card Operating Temperature oC: -25 ~ +70 C (-13 ~ +158 F) Operating Humidity %: 10 ~ 90 Voltage: 12 V DC

SKU: 8925998
Category: Access Control

Description

Anviz EP30 Features:

The new Linux based 1Ghz processor ensures the 1:3000 comparison time less than 0.5 second
The Colorful LCD screen ensures the best interaction and user experiences and can also provide clear notifications to the users.
The WiFi function ensures power on to work, and realize the flexible installation of the device.
The big physical keypad ensures the best user experiences and easily to use for all people around the world
The touch active sensor ensures the quick response for each detection and saving the total power consumption of the device.
The Webserver ensures the easily quick connection and self management of the device.

Specifications:

Capacity
Fingerprint Capacity	3,000
Card Capacity	3,000
Log Capacity	50,000
Inferface
Comm	TCP/IP, RS485, Mini USB, Optional Wi-Fi
Feature
Identification mode	Finger, Password, Card(Optional EM, Mifare Module)
Card reading distance	1~5cm ( 125KHz), 13.56MHz >2CM ) for standard CR80 card
Interfaces	Wiegand in & out, Relay out, Door contact, Exit button,Door bell
Identification speed	<0.5s
RFID Card	Optional EM, Optional mifare
Working Temperature	-25°C~70°C
Humidity	10% to 90%
Power	DC12V
WebServer	Support

Application

Anviz EP30 Application
